Ford Falcon / Fairlane (6 Cyl & V8 AU Series 1, 2 & 3) 1998 - 2002

Ellery Automobile Repair Manual

By Ellery Staff
A$62.50
FREE SHIPPING*
— or —

Availability: Usually dispatched same or next day

Ask us a question about this product

Front Cover

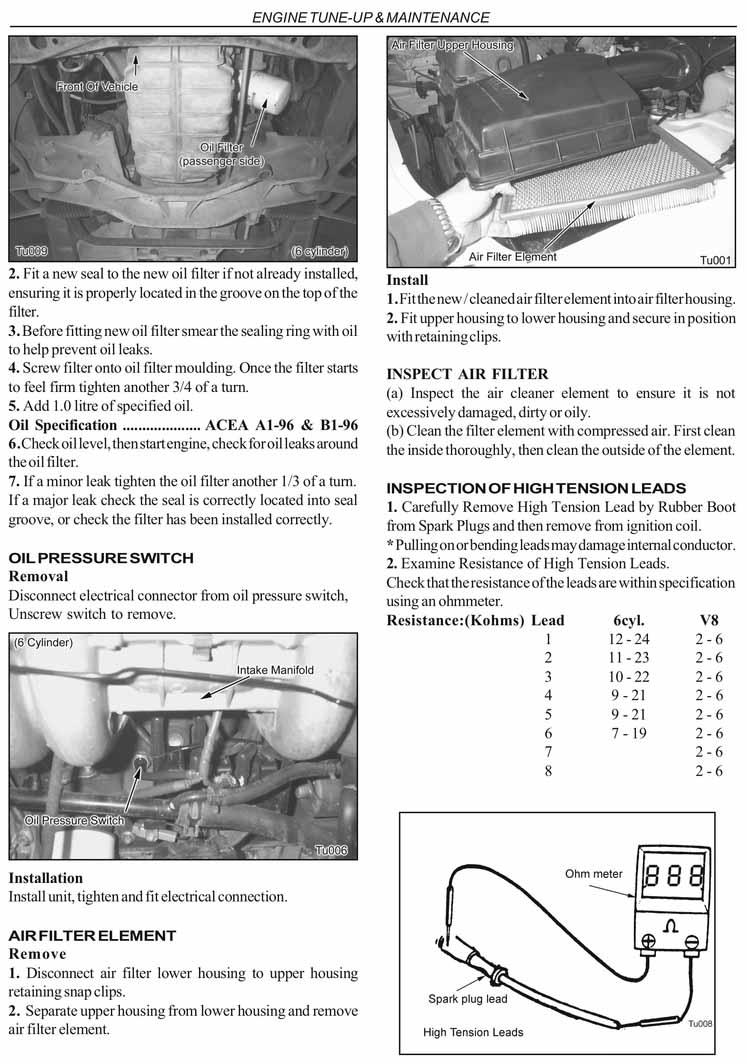

Excerpt

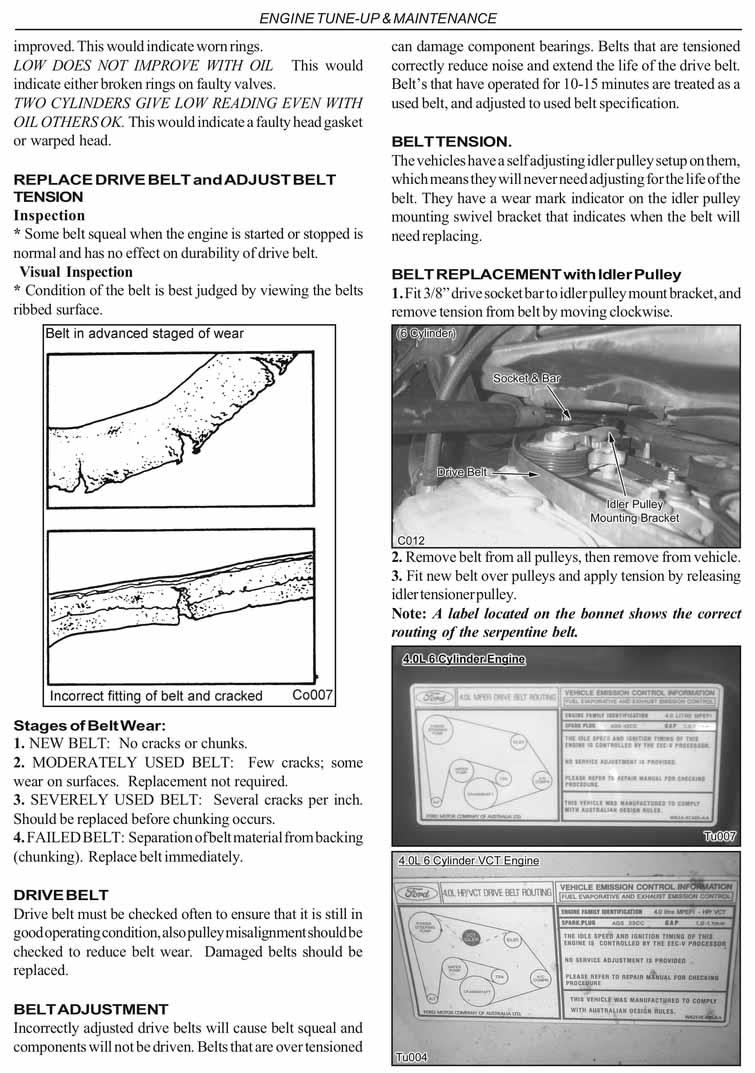

Excerpt

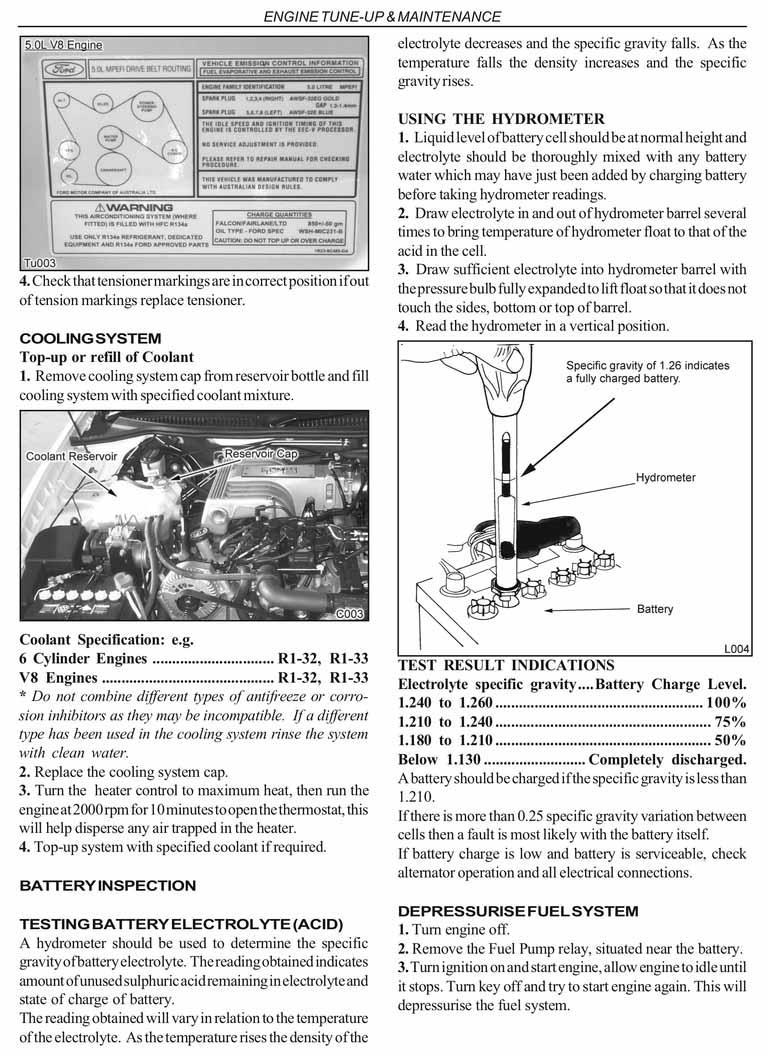

Excerpt

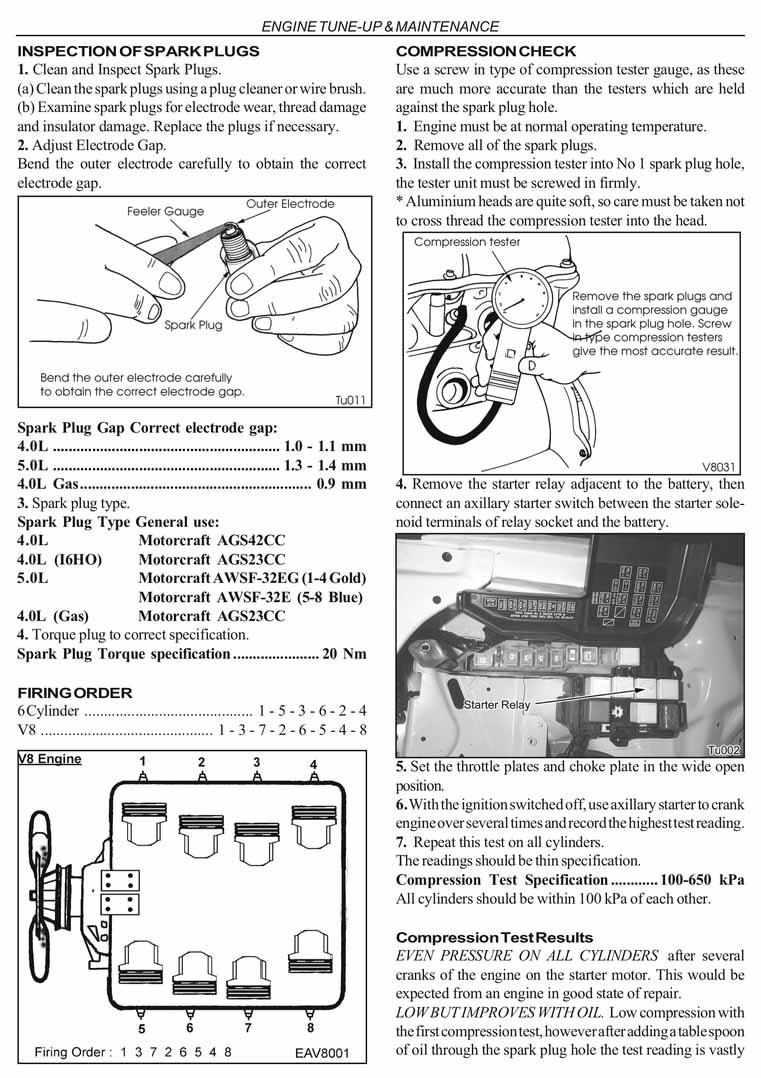

Excerpt
Stock image only. Actual cover art may differ.
Ford Falcon/Fairlane 6 Cyl & V8 AU Series 1, 2, 3 1998 - 2002 Owners Service & Repair Manual Covers Models: AU Series Ford Falcon, Fairlane, LTD, XR6, XR8 and Utes.

Engines described are all petrol engines except the 4.0L I6 LPG which is a dedicated LPG engine: 4.0L I6 OHC SEFI 4.0L I6 HP 4.0L I6 VCT 4.0L I6 LPG 5.0L V8 5.0L V8 HO

Transmissions covered: M57 5-speed manual, BTR 93LE 4-speed automatic (6-cylinder), and BTR 97LE 4-speed automatic (V8)

Please note: Manual does include the Classic model features.

Please note: The Sunroof is NOT COVERED in this manual.

Contents:
● General Information
● Engine Tune-Up and Maintenance
● 6 Cylinder Engine Maintenance and Rebuild
● V8 Engine Maintenance and Rebuild
● Starter System
● Charging System - Alternator and Battery
● Cooling System
● Ignition, Fuel and Emission Systems
● Clutch
● Automatic Transmission BTR 93/97LE
● 5 Speed Manual Transmission
● Drive / Tail Shaft and Universal Joints
● Final Drive - Beam Axle
● Final Drive - IRS
● Steering
● Front Suspension and Axle
● Rear Suspension - Beam Axle
● Rear Suspension - IRS
● Brake System
● Exhaust System
● Fuel Tank and EFI Fuel Pump
● Wheels and Tyres
● Windscreen Wipers and Washers
● Body
● Heating, Air Conditioning and Automatic Climate Control
● Instruments, Stereo System and Horn
● Body Electronics, Smartlock / Smartshield and Satellite Navigation
● Lights and Switches
● Diagnostic Charts and Troubleshooting
● Electrical
● Junction Box
● Grounds Part 1 - AU1
● Grounds Part 2 - AU1
● Grounds Part 1 - AU2 SWB
● Grounds Part 2 - AU2 SWB
● Grounds Part 1 - AU2 LWB
● Grounds Part 2 - AU2 LWB
● Grounds Part - Commercial
● Grounds Part 1 - AU2 Wagon
● Grounds Part 3
● Power Distribution
● Body Electronics Module - Low Series
● Body Electronics Module - High Series
● EFI 4.0 litre.
● EFI 5.0 Litre
● LPG 4.0 Litre
● Starting and Charging System
● Automatic Transmission
● Engine Cooling Fans
● ABS & Traction Control
● Cruise Control System
● Instrument Cluster - Low Series
● Instrument Cluster - High Series
● Audio System - SWB
● Satellite Navagation AU2
● Heater & A/C System
● A/C Auto Temperature Control
● Clock
● Power Seats
● Power Seats - Memory
● Power Door Locks
● Power Door Locks - Commercial
● Power Windows
● Power Mirrors - Standard & Memory
● Rear Demist
● Wiper Washer System
● Mobile Office
● Horn
● Air Bags - AU1
● Air Bags - AU2 & Commercial
● Courtesy Illumination - Low Series
● Courtesy Illumination - High Series
● Exterior Lighting - Low Series
● Exterior Lighting - High Series
● Exterior Lighting - Commercial
● Turn / Hazard Lamps
● Stop & Backup Lamps
● Trailer - AU2
● Trailer - Commercial

This workshop manual is produced for the Australian market. These vehicle specifications may vary from those sold in other countries. Please be aware of these possible differences prior to using the data contained within.

General information on Repair Manuals

Please note that workshop manuals are usually written for models sold in a specific country. Differences in specification can exist between models sold in different countries and items such as engines can vary. Please check that the manual will cover your model before purchase and if you are unsure please contact us first.
